Sunday, February 10, 2019

How to Use XTUNER E3 DTC Query Function

 Here i want to share the guide on how to use XTUENR E3 diagnostic tool DTC Query function.Hope it helps!

DTC query function is a DIY function, users can query, modify and create OBD DTCs by themselves requirement in local DTCs, and users can synchronize to XTUNER TDINTEL company cloud server thought the internet too.

Enter DTC query to input your trouble code to get the meaning.



XTUNER E3
Article from:http://blog.uobdii.com

Friday, February 8, 2019

How to Use XTUNER E3 to Diagnose Hyundai Elantra HDC 2012

I will show you how to diagnose Hyundai Elantra(HDC) 2012 G 1.6 DOHC by Xtuner E3 Wifi on Android-based PAD win10. To me, Xtuner E3 Wifi is worth each penny, it can do what I want it to do, so I would like to share what I test ok and communicate with you who have Xtuner E3 or will own one.

Tool to prepare:
  • Xtuner E3 wifi OBD2 scanner, $145 free shipping at uobdii.com, 3-5 working days delivery. BTW, Angela is experienced customer service, she is very familiar with E3 and we chat friendly.
  • Android-based PAD win10 with WIFI available
  • Hyundai Elantra(HDC) 2012 G 1.6 DOHC

Function to display:
Read and clear DTCs on Engine,
Read data stream
BCM active test, Wiper relay and Head Lamp relay

Communicate: Via WIFI

Procedure:
  1. Connect PAD WIFI.
  2. Click “Xtuner E3.exe” and come to the function menu.
e3-diagnose-hyundai-01
  1. Click “Settings” to check Xtuner E3 basic version incl. system version, firmware version, link version and serial number.
  2. Back to the menu, click “Expert Service System”, and choose Hyundai PRO v19.1.
xtuner-e3-test-02
  1. Choose “Diagnose”-> “Vehicle Manual Select” incl. Area, model, year and engine. E.g Hyundai Elantra(HDC) 2012 G 1.6 DOHC.
xtuner-e3-test-hyundai-03 xtuner-e3-test-hyundai-04 xtuner-e3-test-05
  1. Click “system selection”, Xtuner E3 covers Engine, AT, ABS, airbag, BCM, IMMO and CODE. Here I select “Engine” to read and clear DTCs.
xtuner-e3-test-hyundai-06
  1. Function: data list
xtuner-e3-test-08
  1. Click “BCM”->”active test”-> “Wiper relay”, then “Head Lamp relay”,
xtuner-e3-test-09

Wednesday, February 6, 2019

XTUNER E3 Client Installation and Activation Guide

This article for educational purpose on how to install and active XTUNER E3 client.If you want more info please visit XTUNER E3 usermanual.

Installation of XTUNER E3 Client:
Download XTUNER E3 client on:http://www.tdintel.com, and download “XTUNER-E3 Setup Vx.xx”
Unzip XTUNER E3 Setup Vx.xx and run XTUNER E3 setup.exe:
How to Install and Active XTUNER E3 Client How to Install and Active XTUNER E3 Client (2)
Please click “Next”
How to Install and Active XTUNER E3 Client (3)
Please click “Next”
How to Install and Active XTUNER E3 Client (4) How to Install and Active XTUNER E3 Client (5)
Please click “Install”
How to Install and Active XTUNER E3 Client (6) How to Install and Active XTUNER E3 Client (7)
XTUNER E3 wireless diagnostic service system installs successfully.

Active XTUNER E3 Client:
At first, please keep network working. Run XTUNER E3 APP, then click “Online store” to get applications.
How to Install and Active XTUNER E3 Client (8)
Please wait…
How to Install and Active XTUNER E3 Client (9)
Please click “Online Store”
How to Install and Active XTUNER E3 Client (10)
Please input the S/N number and password getting from the envelope, and then click “Login”.
How to Install and Active XTUNER E3 Client (11) How to Install and Active XTUNER E3 Client (12)

Please click “Login”
How to Install and Active XTUNER E3 Client (13)
If the product is not activated, please click “Yes”.
How to Install and Active XTUNER E3 Client (14)
Please input your information, the Email address and country are required, and then click “Activate”.
How to Install and Active XTUNER E3 Client (15)
Note:Your email address must be real in order to get the activated link and the further better service from the manufacturer.
The software update reminder and the new product release information will be sent to your email.If you do not receive the activation email, please add “service@tdintel.com” to the white list of your mailbox and try the activation process again.Company name: company name must be filled in and the length is within 250 characters.OBD360
Country: please choose your country in the list. Press “Yes” to confirm your information:
How to Install and Active XTUNER E3 Client (16)
Please click the link to get the confirmation from the manufacturer.
How to Install and Active XTUNER E3 Client (17)

Monday, February 4, 2019

How to Use Vpecker Easydiag Diagnose Opel Astra H

Got one Vpecker diagnostic adapter, it perfectly diagnose Opel Astra H, here I'd share the procedure. More diagnostic tool for vehicle check here:

http://www.uobdii.com/wholesale/car-diagnostic-tool/


Procedure:
Click on "Diagnosis service"


Saturday, February 2, 2019

Using Xtuner E3 for BMW 520d Diagnosis and initialization of CBS service

Using Xtuner E3 to perform BMW 520d Diagnosis and initialization of CBS service in step by step procedure.

Procedure:
Before using Xtuner E3, you are advise to read the quick user manual first.

Click on "Diagnosis service".


Tuesday, December 18, 2018

How does Xtuner E3 work on Ford (Europe) Focus 1.6 tdci DPF Reset?


Hook Xtuner E3 diagnostic tool up to one Ford (Europe) Focus 1.6L 2003 and perform a series diagnostic functions incl. read & clear trouble code, data list, active test, special functions etc. It runs good, I like it very much and would like to share how it works.

Procedure:
* Before using Xtuner E3 to work on Ford Focus 1.6 tdci DPF Reset, please read the quick user manual (incl. registration and activation).

Select "Diagnosis Service".

Select Ford (Europe).


The Ford coverage of Xtuner E3.
Select "Diagnose".
Select "Vehicle Auto Scan".
Please turn the ignition on.
Ford Focus value.
System selection.


Many systems are supported.

We go for " PCM - Powertrain Control Module".
Have options "Trouble code, data list, active test, special function".
Firstly go for "Trouble code".

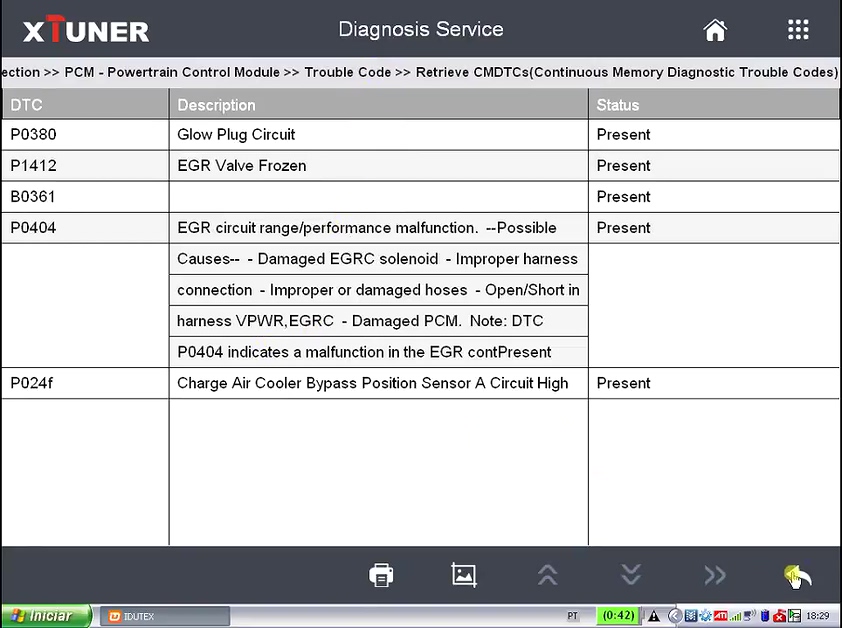

Retrieve CMDTCa .

Back to select "Data list".

Here attach a part values.





Take several value for example.



Go for special functions.

Select "Reset the Diesel Particulate Filter Learned Values".

Just follow the on-screen instruction.






Choose more data list for value and unit.
Active test option.

Back to select "Quick Test" to see the value.


DTC, description and status.



Back to select "Auto scan" for data list.

You can also select the part you want for the value.

....
Ok, anyway Xtuner E3 diagnostic tool runs fluently, it's good for Ford Focus diagnostic service incl. read & clear trouble code, data list, active test, special function.

I enjoy it.
